PCB Testing Fixtures
Spring-pin bed-of-nails jigs for in-circuit and functional testing. Precision-machined frames with pneumatic or manual actuation, supporting single and multi-board fixtures.
Functional Test Machines (FCT)
Automated FCT systems integrating pneumatic pressing, multi-channel signal measurement, barcode scanning and PC-based data logging. Ready for production line integration.
ICT / In-Circuit Test Setups
Complete in-circuit test stations with high-density spring probes, guided probe testing support and comprehensive test coverage for populated PCB assemblies.
Belt Conveyor Systems
Industrial belt conveyors with variable speed VFD drives, adjustable width guides, inclined sections and heavy-duty MS or SS construction for assembly & logistics lines.

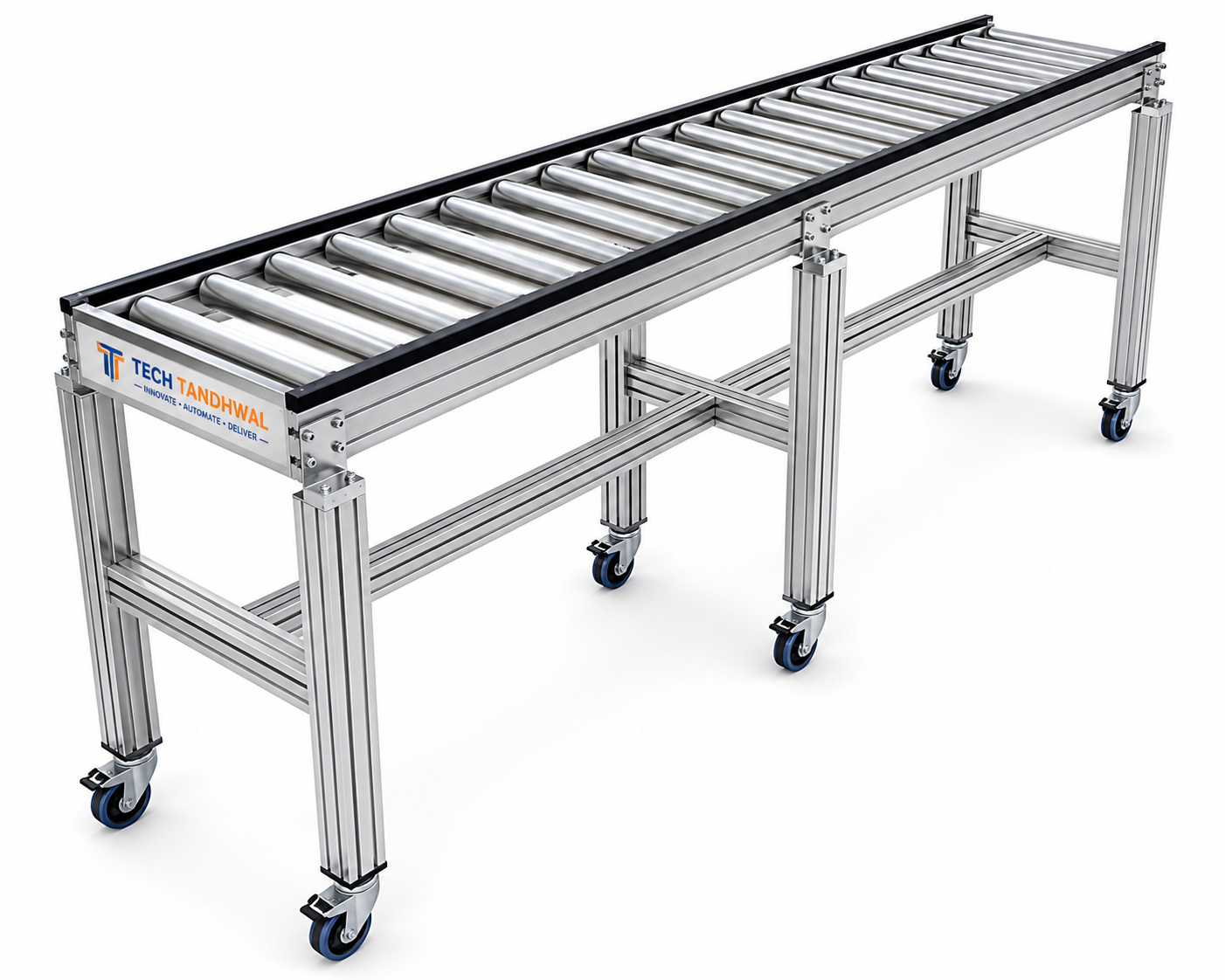

Roller Conveyor Systems
Gravity and powered roller conveyors for material handling, pallet transfer and inter-station movement. Available in GI, SS and aluminium profiles.

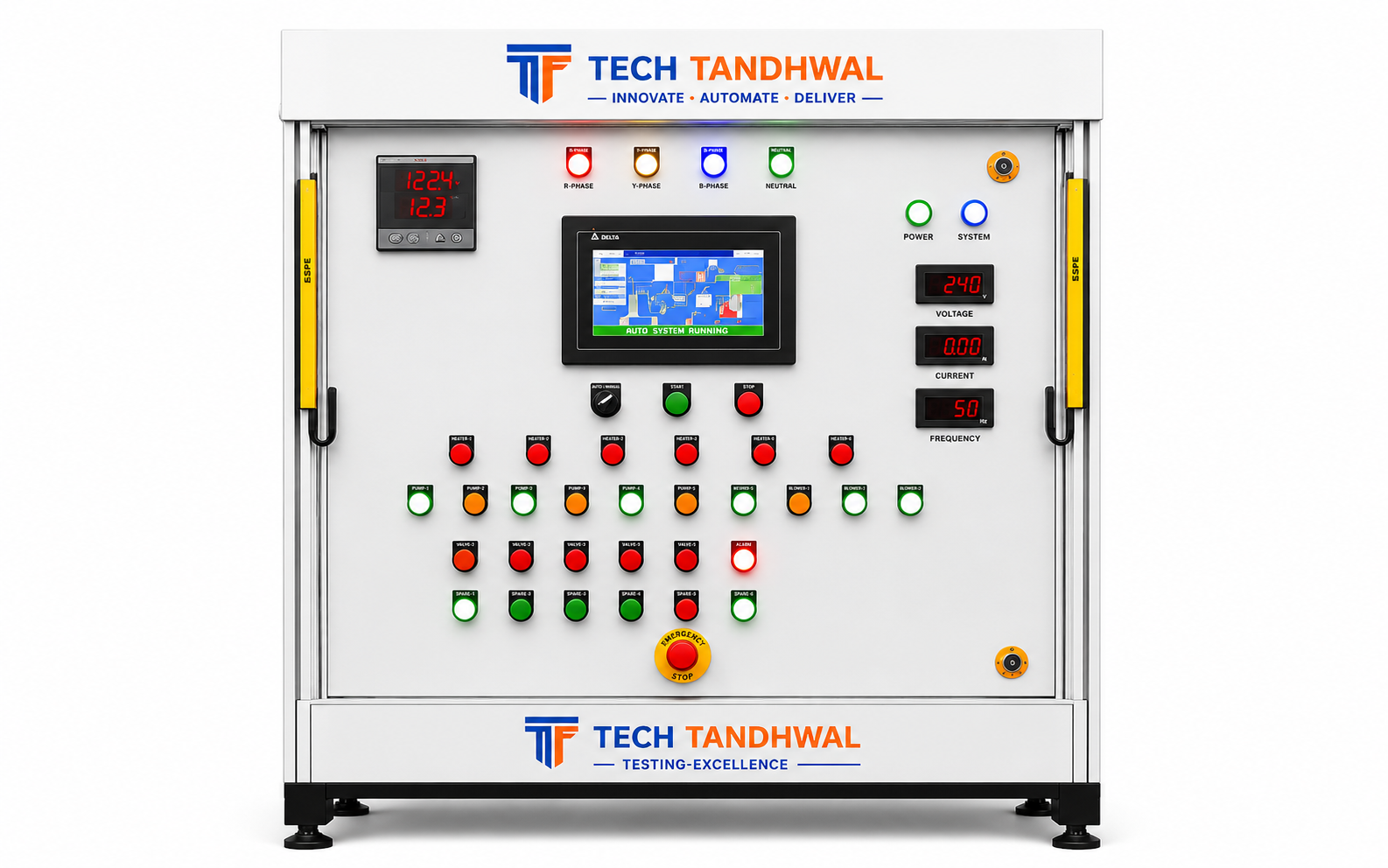

PLC Control Panels
Custom PLC panel design and manufacturing using Siemens S7, Allen Bradley, Mitsubishi, Delta and Schneider platforms. Complete with HMI, SCADA interface and field wiring.

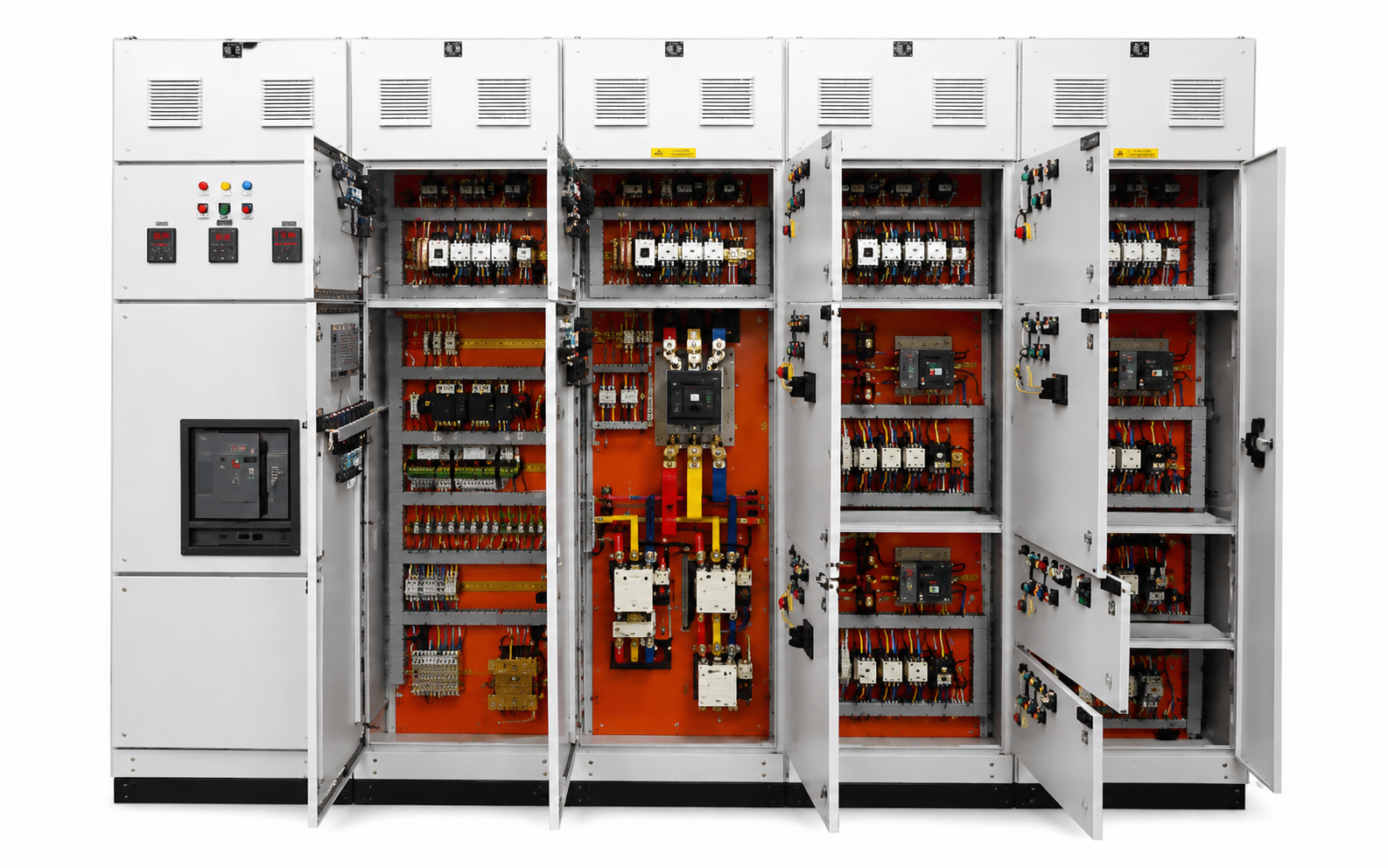

MCC & VFD Panels
Motor Control Centers and Variable Frequency Drive panels for industrial motors. Designed per IS standards with full protection and interlocking as required.

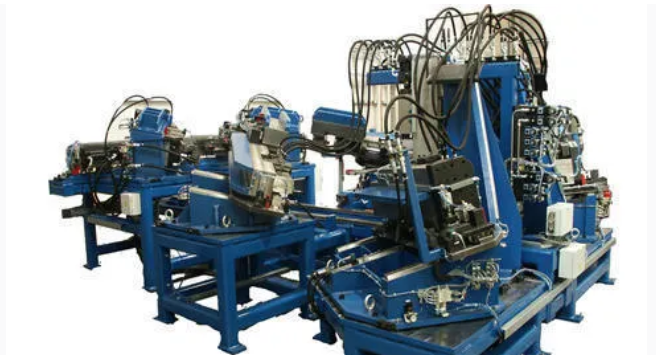

Special Purpose Machines
Fully custom SPMs for pressing, riveting, marking, dispensing, welding assistance and assembly automation. Designed around your product and cycle time requirements.

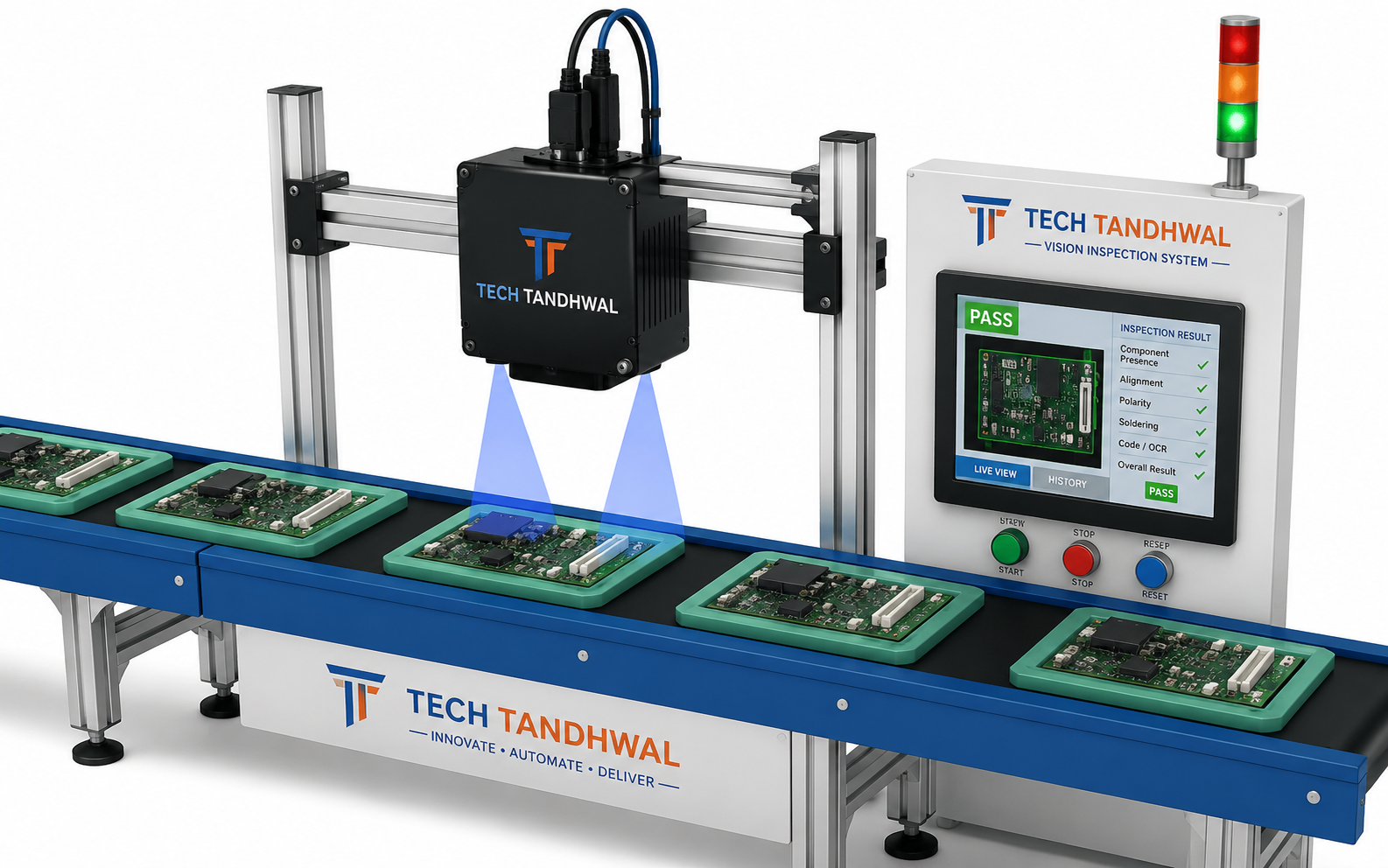

Camera-Based Inspection Systems
Machine vision systems for defect detection, presence/absence verification, barcode reading, OCR and dimensional measurement on production lines.

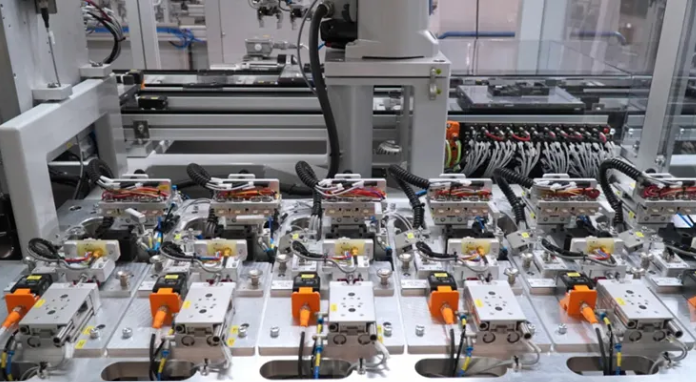

End-of-Line Test Stations
Complete EOL test benches combining functional, leakage, electrical safety and dimensional testing into a single automated workstation with pass/fail reporting.
// Featured: PCB Testing Fixture
Our flagship product — the custom PCB testing fixture — is the result of years of precision engineering. Used on production lines across automotive, consumer electronics and industrial electronics sectors.
Every fixture is designed from your Gerber files and mechanical drawings, with pogo-pin layout verified before manufacturing commences.
| Contact Pins | Pogo-Pin / Spring Probe (Coda, Everett Charles) |
| Actuation | Manual / Pneumatic (up to 6 bar) |
| Frame Material | Aluminium / Engineering Plastic |
| Accuracy | ±0.05 mm pin placement |
| Lead Time | 7–15 working days (from approved design) |
| Applications | ICT, FCT, Flying Probe support |
